Split verification of board

Background

Verify the board setting on config page, there is some data redundancy. Besides, users will reset the verify status when modifying the date, resulting in a bad user experience.

Expect

More simplified Verify API.
New api to get info of datasource.

Solutions

1. Split the origin board verify API

1.1 API Design

AS-IS

paths: api/v1/boards/{boardType}
method: POST
request: {
  "type": "...",
  "boardId": "...",
  "projectKey": "...",
  "site": "...",
  "token(email+token)": "...",
  "startTime": "...",
  "endTime": "..."
}
responses:
  '200': {
    "users": [
        "..."
    ],
    "targetFields": [
        {
            "key": "...",
            "name": "...",
            "flag": false
        }
    ],
    "ignoredTargetFields": [
        {
            "key": "...",
            "name": "...",
            "flag": false
        }
    ],
    "jiraColumns": [
        {
            "key": "...",
            "value": {
                "name": "...",
                "statuses": [
                    "..."
                ]
            }
        }
    ]
}

TO-BE

paths: api/v1/boards/{boardType}/verify
method: POST
request: {
  "boardId": "...",
  "site": "...",
  "token(email+token)": "..."
}
responses: {
  "project": "ADM"
}

Exception Handler

status	message	hintInfo
400	Token cannot be empty.	Please reconfirm the input
400	Token’s pattern is incorrect.	Please reconfirm the input
400	boardType param is not correct	Please reconfirm the input
401	Failed to get Jira info_status: 401 UNAUTHORIZED, reason: xxx	Token is incorrect
403	Failed to get Jira info_status: 403 FORBIDDEN, reason: xxx	403 Forbidden
404	Failed to get Jira info_status: 404 NOT_FOUND, reason: xxx	404 site Not Found
404	Failed to get Jira info_status: 404 NOT_FOUND, reason: xxx	404 boardId Not Found
500		Internal Server Error

Jira API

paths: https://%s.atlassian.net/rest/agile/1.0/board/{boardId}
method: GET
header: "Authorization: Bearer <YOUR-TOKEN>"

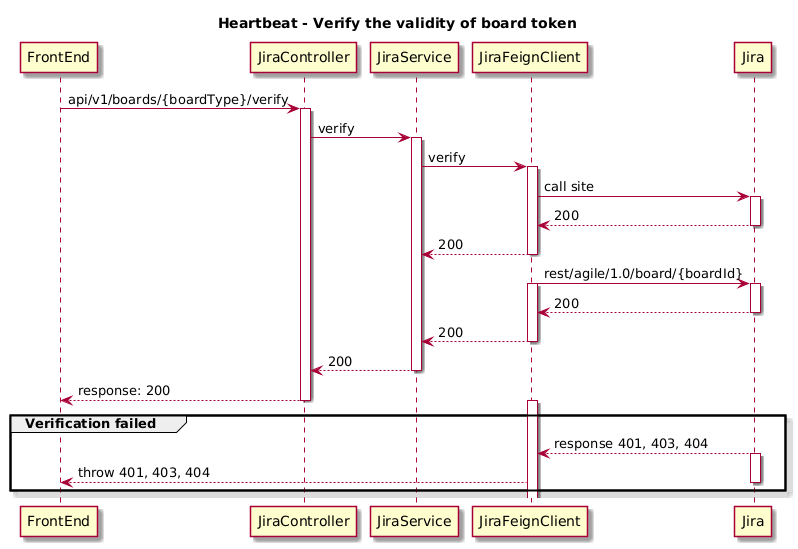

1.2 Sequence Diagram

2. New api to get info of board

Returns datas from a board, for a given board Id. Board configuration will use those datas, like Crew settings, Cycle time settings, Classification setting. The new api to get info of board will load when metrics page load board contents.

2.1 Request

URL

POST api/v1/boards/{boardType}/info

Request body

Body	Type	Description	Note
boardId	string	Board ID.
projectKey	string	Specify the key of the project.
site	string	Host url of the board.
token	string	Authentication for board, it is included email and token input
startTime	string	Fillter results by startTime, it will use in JQL to get data.
endTime	string	Fillter results by endTime, it will use in JQL to get data.

Example

{
  "boardId": "2",
  "projectKey": "ADM",
  "site": "dorametrics",
  "token": "token",
  "startTime": 1700409600000,
  "endTime": 1701619199999
}

2.2 Response

{
    "users": [
        "heartbeat user0",
        "heartbeat user1"
    ],
    "targetFields": [
        {
            "key": "issuetype",
            "name": "Issue Type",
            "flag": false
        }
    ],
    "ignoredTargetFields": [
        {
            "key": "summary",
            "name": "Summary",
            "flag": false
        }
    ],
    "jiraColumns": [
        {
            "key": "To Do",
            "value": {
                "name": "TODO",
                "statuses": [
                    "TODO"
                ]
            }
        },
        {
            "key": "In Progress",
            "value": {
                "name": "Doing",
                "statuses": [
                    "DOING"
                ]
            }
        }
    ]
}

Exception Handler

status	message	hintInfo
400	The startTime should be before the endTime.	Please reconfirm the input
400	Token cannot be empty.	Please reconfirm the input
400	Token’s pattern is incorrect.	Please reconfirm the input
400	boardType param is not correct	Please reconfirm the input
401	Failed to get Jira info_status: 401 UNAUTHORIZED, reason: xxx	Token is incorrect
403	There is no enough permission.	Permission deny
404	Failed to get Jira info_status: 404 NOT_FOUND, reason: xxx	404 Not Found
500		Internal Server Error

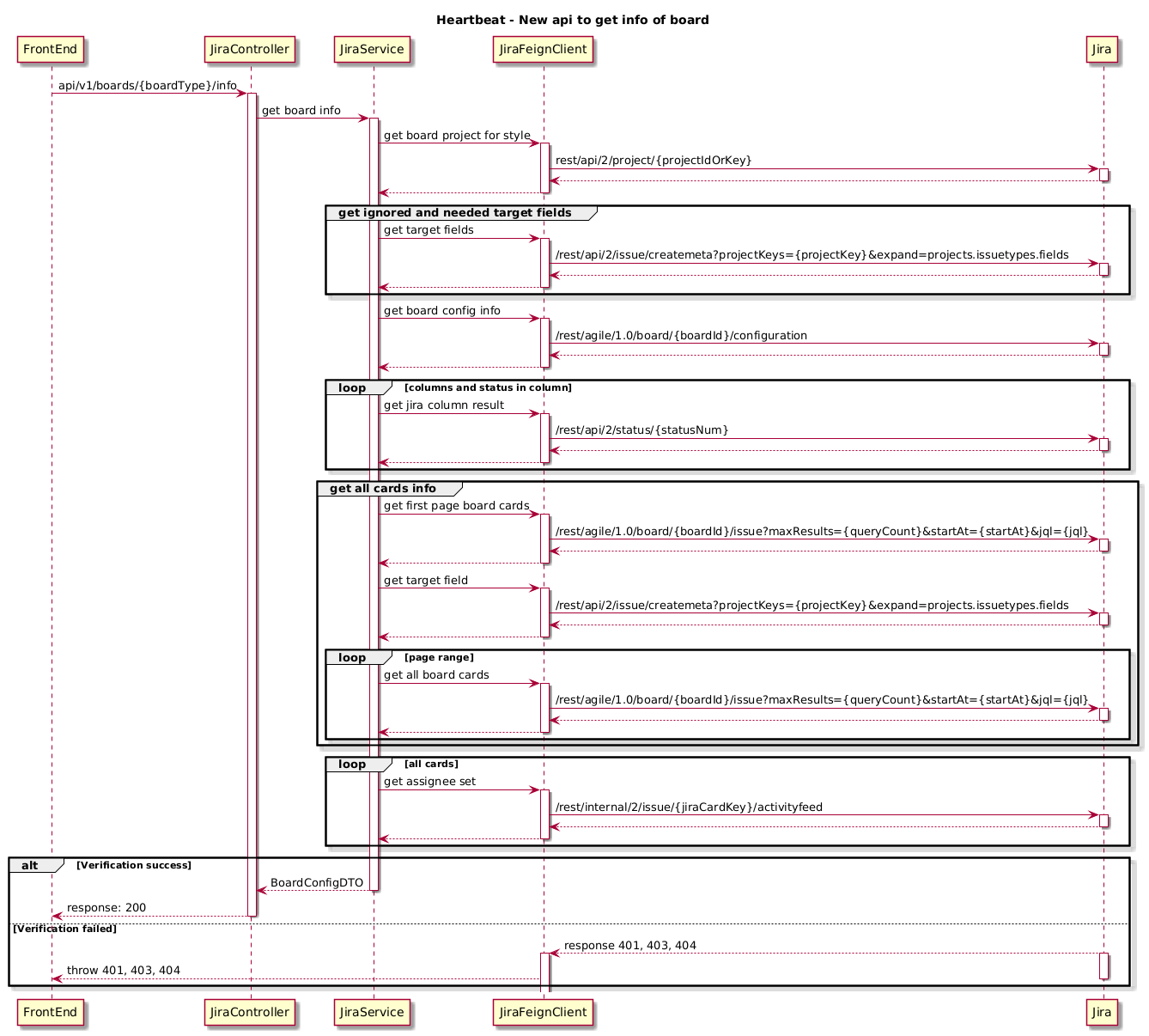

2.3 Sequence Diagram
