According to the needs of the business, users believe that analyzing the overall situation of the flow state of the card can be a good way to find the problems of the team and optimize the team.

1. View the rework times of all cards in the current iteration.
2. Export the rework times of each card.

On the design of the original report generating API, a new rework setting is added to the request body.

• TO-BE

path: /reports/{metricType}
method: POST
request body: {
  ...
  "reworkTimesSetting" : {
      "reworkState": String
      "excludedStates": List<String>
  }
}

On the design of the original query generation metric API, add rework metrics data to the response body.

• TO-BE

path: /reports/{reportId}
method: GET
response: {
  ...
  "rework" : {
      "totalReworkTimes": Integer
      "reworkState": String
      "fromToDo": Integer
      "fromInDev": Integer
      "fromBlock": Integer
      "fromWaitingForTesting": Integer
      "fromTesting": Integer
      "fromReview": Integer
      "fromDone": Integer
      "totalReworkCards": Integer
      "reworkCardsRatio": Double

  }
}

We will calculate rework times for each from state on every real done card. The specific tasks are as follows:

1. In the JiraService.getRealDoneCards() method, we added a new line that references the getReworkTimes method below the line getAssigneeSet().
2. We created a new method called getReworkTimes(), which receives a CardHistoryResponseDTO and returns a list of ReworkTimeInfo, which is a class as follows:

ReworkTimeInfo
{
  "state": "In Dev",
  "times": 1
}

ReworkTimeInfo has two variables, state stores the rework target state. And times stores the rework times which is initialized to 0.

3. We define a reworkJudgmentMap map, whose key is target rework state and value is a set containing source states.

 reworkJudgmentMap.put(ANALYSE, Set.of(TODO, DEVELOPMENT, BLOCK, REVIEW, WAITING, TESTING, DONE));
 reworkJudgmentMap.put(TODO, Set.of(DEVELOPMENT, BLOCK, REVIEW, WAITING, TESTING, DONE));
 reworkJudgmentMap.put(DEVELOPMENT, Set.of(BLOCK, REVIEW, WAITING, TESTING, DONE));
 reworkJudgmentMap.put(BLOCK, Set.of(REVIEW, WAITING, TESTING, DONE));
 reworkJudgmentMap.put(REVIEW, Set.of(WAITING, TESTING, DONE));
 reworkJudgmentMap.put(WAITING, Set.of(TESTING, DONE));
 reworkJudgmentMap.put(TESTING, Set.of(DONE));

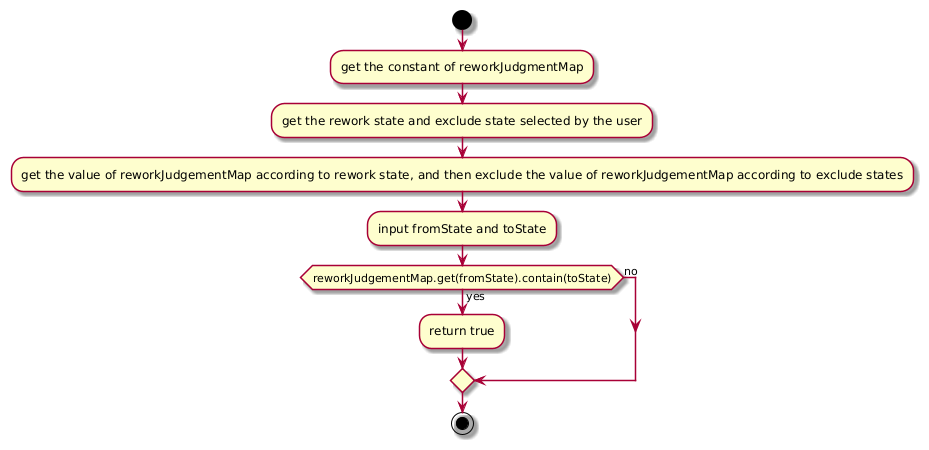

4. Determine the rework we need, there are three condition

• Initialize rework judgment.
• Rework state selected by the user.
• User excluded state.

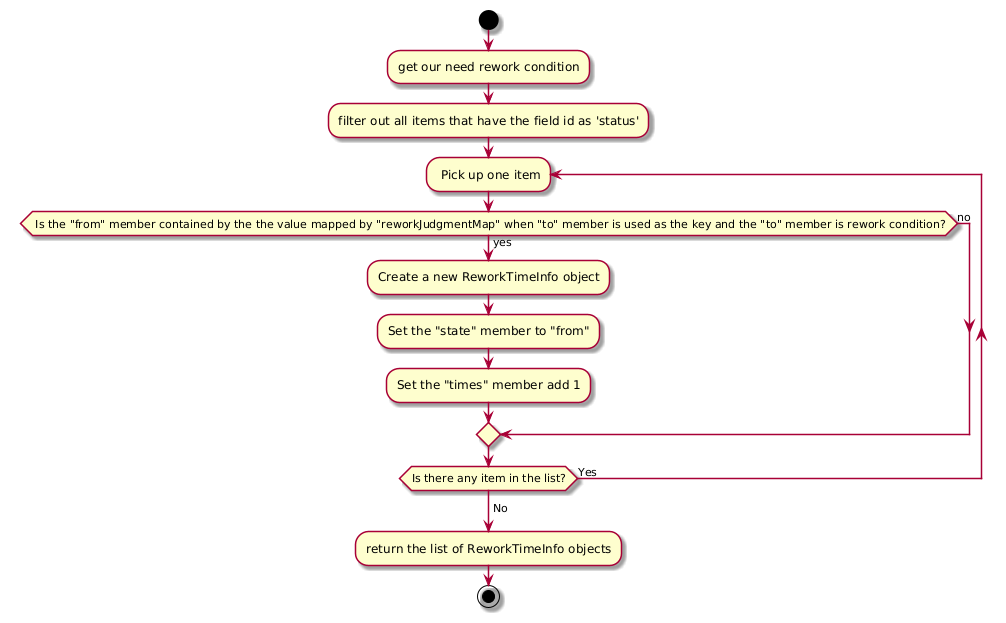

5. In the getReworkTimes() method, if user not check “Consider the ‘Flag’ as ‘Block’, we will do as follows:

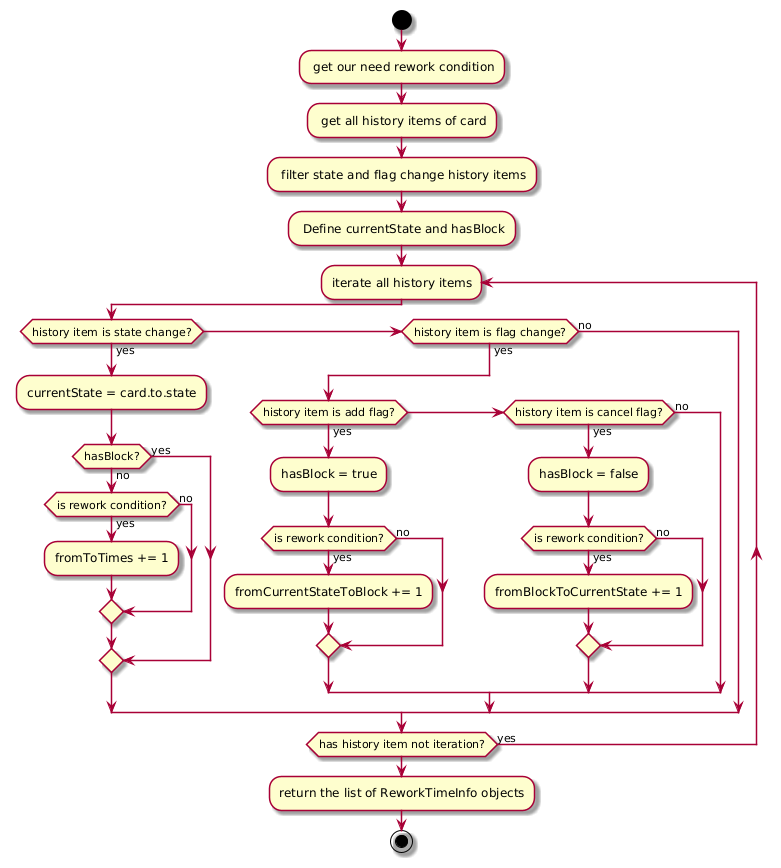

6. Some users are in the block state according to the added flag, so if user check “Consider the ‘Flag’ as ‘Block’, and the calculation logic should change, the implementation pseudocode is as follows:

7. We set the ReworkTimeInfo list in JiraCardDTO object as reworkTimeInfos member variables.
8. In the GenerateReporterService.generateBoardReporter() method, we use reworkTimeInfos variable in JiraCardDTO object calculate rework metrics and put them to ReportResponse, which are the same as the API in the 1.2 section.
   • We traverse all items in reworkTimeInfos and sum the rework times in each state.
   • Then we sum the total time of reworks in each state as the totalReworkTimes.
   • If a card’s reworkTimeInfos is not empty, we set totalReworkCards add one.
   • The reworkCardsRatio is calculated by dividing totalReworkCards by total real done card count on the current sprint.

When generating the board csv file, we need to export the rework information of each card, so we need to add a series of table header information, and assemble and filter according to the config provided by reworkSetting. The following is the full table header information about rework:

• rework times to state
• from in todo to state
• from in dev to state
• from block to state
• from review to state
• from waiting for testing to state
• from testing to state
• from done to state

state is the rework in our previous setting, and the exported table header is spliced according to it.

According to business needs, we will only have some headers, for example, we need to calculate rework to review, exported headers will have rework times to review , from done to waiting for testing,from done to testing and from done to review. Because the meaning of rework is to calculate from the subsequent process to the previous process

Implementation method

In 2, we have obtained reworkTimeInfos, and then can use this data to write into a csv file.

tasking:

• In KanbanCsvService.generateCSVForBoard() method, we need to use reworkTimeInfos to build table header. Reference CycleTimeInfo to build the header.
• In CSVFileGenerator.getFixedFieldsData() method, we need to build the row for rework. Reference CSVFileGenerator.getOriginCycleTimePerRow().
