Considering there are some constrains that API call could not longer than 59 seconds from M Account, we have to re-fine our implementation by changing sync call to async.

While it’s not easy to make it at a once, we will do it step by step. Below are the design including C2 design with

• AS-IS

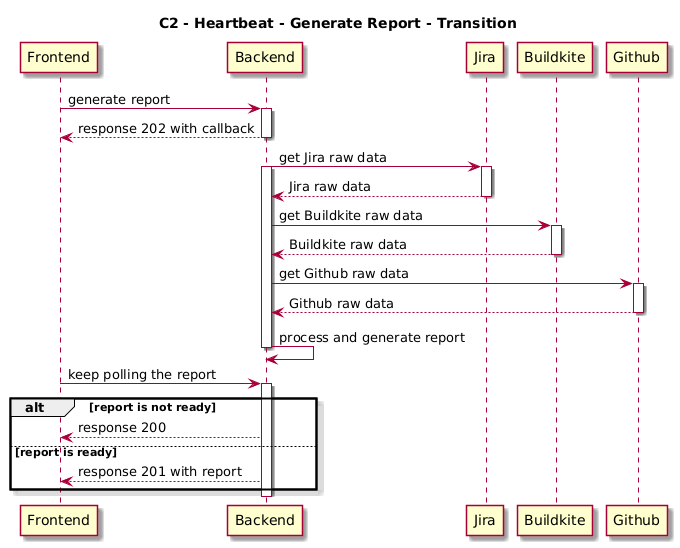

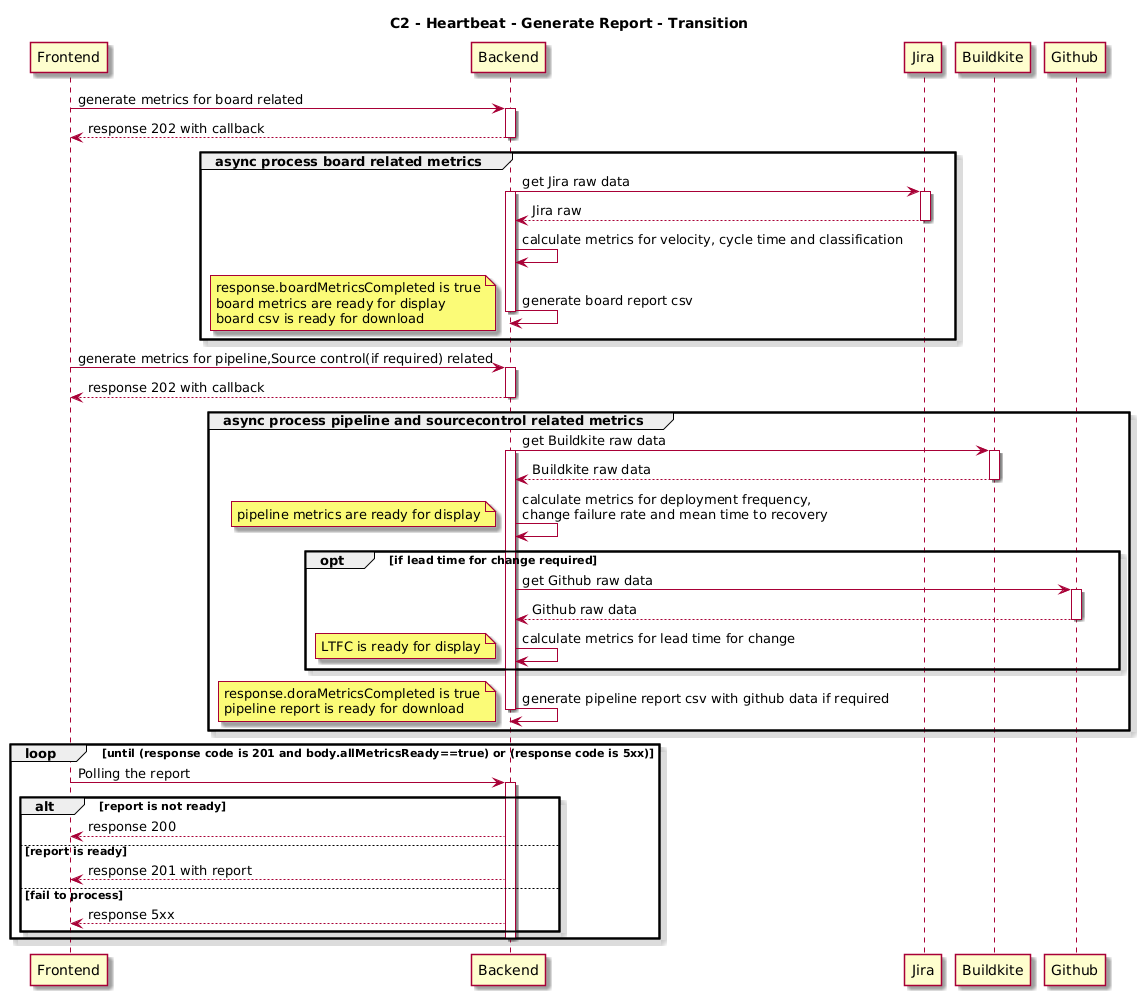

• Transition
• TO-BE

• Accepted generate report API

Method POST
URI: /api/v1/reports
Request payload:
{
  reoprtRequest...
}
Response:
202 Accepted
{
    "callbackUrl": "/api/v1/reports/{reportId}",
    "interval": 10
}

• Callback generate report API

Method GET
URI: /api/v1/reports/{reportId}
Response:
204:
{
    "status": 204,
}
201:
{
    "status": 201,
    reoprtData...
}

Exception Table

• Async generate board report

POST /reports/{board}

Request payload:
{
    "considerHoliday": true,
    "startTime": "string",
    "endTime": "string",
    "metrics": [
      "string"
    ],
    "jiraBoardSetting": {
      "type": "string",
      "token": "string",
      "site": "string",
      "projectKey": "string",
      "boardId": "string",
      "doneColumn": [
        "string"
      ],
      "boardColumns": [
        {
          "name": "string",
          "value": "string"
        }
      ],
      "treatFlagCardAsBlock": true,
      "users": [
        "string"
      ],
      "assigneeFilter": "string",
      "targetFields": [
        {
          "key": "string",
          "name": "string",
          "flag": true
        }
      ]
    }
    "csvTimeStamp": "string"
}

Response:
202 Accepted
{
    "callbackUrl": "string",
    "interval": 0
}

• Async generate dora report

POST /reports/{dora}

Request payload:
{
    "considerHoliday": true,
    "startTime": "string",
    "endTime": "string",
    "metrics": [
      "string"
    ],
    "buildKiteSetting": {
      "type": "string",
      "token": "string",
      "deploymentEnvList": [
        {
          "orgId": "string",
          "orgName": "string",
          "id": "string",
          "name": "string",
          "step": "string",
          "repository": "string",
          "branches": [
            "string"
          ]
        }
      ],
      "pipelineCrews": [
        "string"
      ]
    },
    "codebaseSetting": {
      "type": "string",
      "token": "string",
      "leadTime": [
        {
          "orgId": "string",
          "orgName": "string",
          "id": "string",
          "name": "string",
          "step": "string",
          "repository": "string",
          "branches": [
            "string"
          ]
        }
      ]
    },
    "csvTimeStamp": "string"
}

Response:
202 Accepted
{
    "callbackUrl": "string",
    "interval": 0
}

• Callback to retrieve reports

GET /reports/{reportId}
Response:
204 No Content

201 Created
{
    "velocity": {
      "velocityForSP": 0,
      "velocityForCards": 0
    } <could be null if not required>,
    "classificationList": [
      {
        "fieldName": "string",
        "pairList": [
          {
            "name": "string",
            "value": 0
          }
        ]
      }
    ] <could be null if not required>,
    "cycleTime": {
      "totalTimeForCards": 0,
      "averageCycleTimePerCard": 0,
      "averageCycleTimePerSP": 0,
      "swimlaneList": [
        {
          "optionalItemName": "string",
          "averageTimeForSP": 0,
          "averageTimeForCards": 0,
          "totalTime": 0
        }
      ]
    } <could be null if not required>,
    "deploymentFrequency": {
      "avgDeploymentFrequency": {
        "name": "string",
        "deploymentFrequency": 0
      },
      "deploymentFrequencyOfPipelines": [
        {
          "name": "string",
          "step": "string",
          "deploymentFrequency": 0,
          "dailyDeploymentCounts": [
            {
              "date": "string",
              "count": 0
            }
          ]
        }
      ]
    } <could be null if not required>,
    "changeFailureRate": {
      "avgChangeFailureRate": {
        "name": "string",
        "totalTimes": 0,
        "totalFailedTimes": 0,
        "failureRate": 0
      } <could be null if not required>,
      "changeFailureRateOfPipelines": [
        {
          "name": "string",
          "step": "string",
          "failedTimesOfPipeline": 0,
          "totalTimesOfPipeline": 0,
          "failureRate": 0
        }
      ]
    } <could be null if not required>,
    "meanTimeToRecovery": {
      "avgMeanTimeToRecovery": {
        "name": "string",
        "timeToRecovery": 0
      },
      "meanTimeRecoveryPipelines": [
        {
          "timeToRecovery": 0,
          "name": "string",
          "step": "string"
        }
      ]
    } <could be null if not required>,
    "leadTimeForChanges": {
      "leadTimeForChangesOfPipelines": [
        {
          "name": "string",
          "step": "string",
          "prLeadTime": 0,
          "pipelineLeadTime": 0,
          "totalDelayTime": 0
        }
      ],
      "avgLeadTimeForChanges": {
        "name": "string",
        "prLeadTime": 0,
        "pipelineLeadTime": 0,
        "totalDelayTime": 0
      }
    } <could be null if not required>,
    "reportMetricsError": {
      "boardMetricsError": {
        "status": 400,
        "errorMessage": "string"
      },
      "pipelineMetricsError": {
        "status": 400,
        "errorMessage": "string"
      },
      "sourceControlMetricsError": {
        "status": 400,
        "errorMessage": "string"
      },
    } <could be null if not required>,
    "boardMetricsCompleted": boolean <default is false>,
    "doraMetricsCompleted": boolean <default is false>,
    "allMetricsCompleted": boolean <default is false>,
    "exportValidityTime": 0
}
