CycleTime calculation

When we calculate the relevant card data, we round each number after obtaining the data, following the method of rounding down for numbers below .5 and rounding up for numbers .5 and above. These values are then added together. This approach differs from adding the values first and then rounding, and is done to maintain the accuracy of the precision.

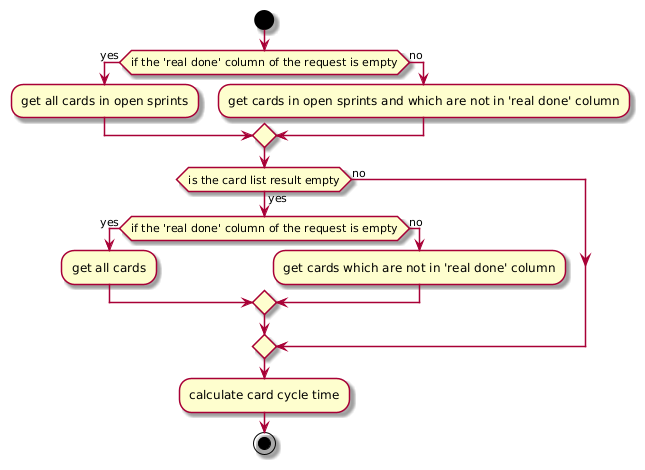

• In current open sprint and status not in real done status.

example:

Real done columns: ‘Testing’ and ‘Done’

• card A in ‘In Dev’ column
• card B in ‘Review’ column
• card C in ‘Testing’ column

Result: card A and B are undone cards

private JiraCardWithFields getAllNonDoneCardsForActiveSprint(URI baseUrl, List<String> status, BoardRequestParam boardRequestParam) {
    String jql;
    if (status.isEmpty()) {
        jql = "sprint in openSprints() ";
    }
    else {
        jql = "sprint in openSprints() AND status not in ('" + String.join("','", status) + "')";
    }

    return getCardList(baseUrl, boardRequestParam, jql, "nonDone");
}

• The earliest time move to real done column is in the date range user selected

example:

selected date range: 2023.8.7 ~ 2023.8.20

Real done columns: ‘Testing’ and ‘Done’

• card A moved to ‘Testing’ column in 2023.8.6 and moved ‘Done’ column in 2023.8.9
• card B moved to ‘Testing’ column in 2023.8.8 and moved ‘Done’ column in 2023.8.10
• card C moved to ‘Testing’ column in 2023.8.15
• card D moved to ‘Testing’ column in 2023.8.21

Result: card B and C are done cards

private String parseJiraJql(BoardType boardType, List<String> doneColumns, BoardRequestParam boardRequestParam) {
    if (boardType == BoardType.JIRA) {
    	return String.format("status in ('%s') AND status changed during (%s, %s)", String.join("','", doneColumns),
    			boardRequestParam.getStartTime(), boardRequestParam.getEndTime());
    }
    else {
    	StringBuilder subJql = new StringBuilder();
    	for (int index = 0; index < doneColumns.size() - 1; index++) {
    		subJql.append(String.format("status changed to '%s' during (%s, %s) or ", doneColumns.get(index),
    				boardRequestParam.getStartTime(), boardRequestParam.getEndTime()));
    	}
    	subJql
    		.append(String.format("status changed to '%s' during (%s, %s)", doneColumns.get(doneColumns.size() - 1),
    				boardRequestParam.getStartTime(), boardRequestParam.getEndTime()));
    	return String.format("status in ('%s') AND (%s)", String.join("', '", doneColumns), subJql);
    }
}

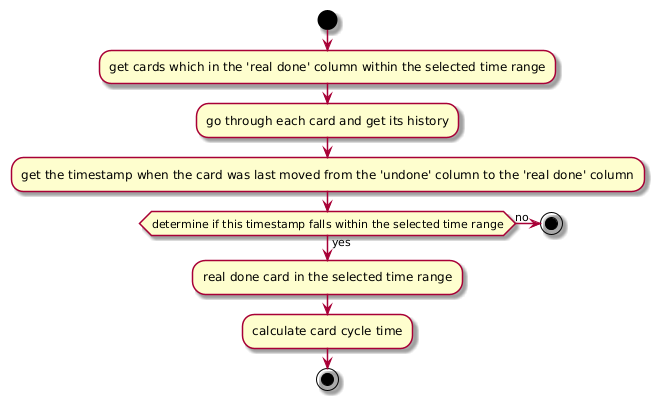

1. Get done card histories;
2. Filter histories about status changed;
3. Filter status changed to real done statuses;
4. Get the timestamps moved to real done statuses;
5. Compare timestamps with selected date range to check whether it belongs to this range;

• flag
  : OriginCycleTime：FLAG
• block
  : OriginCycleTime：BLOCK
• ---green line---: Block days when Set Consider the “Flag” as “Block” is False
• ---purple line---: Block days when Set Consider the “Flag” as “Block” is True
• ⚠️ When calculating the time for the non-realdone column, subtract the flag duration if this column is flagged and Consider the “Flag” as “Block” is True

Number	Description	Timeline diagram	Block Days (Consider the “Flag” as “Block” is True)	Block Days (Consider the “Flag” as “Block” is False)

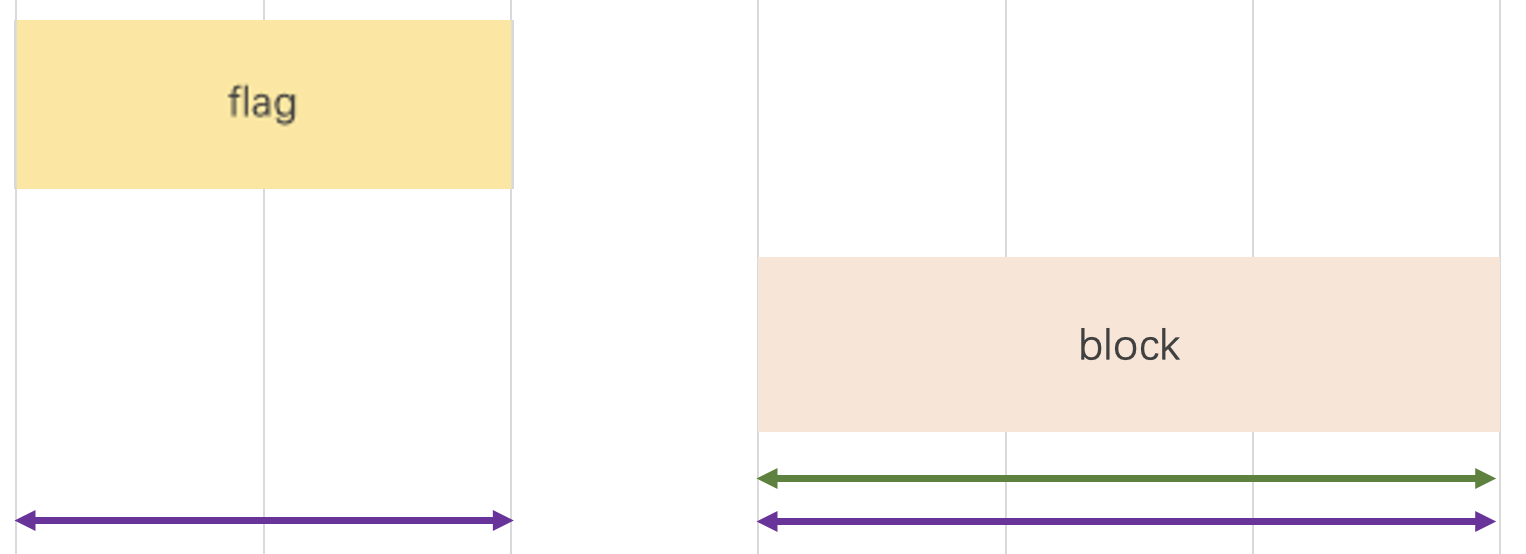

1	Move to Block column after flag duration		Time between Add flag and Remove flag + Time in block column	Time in block column

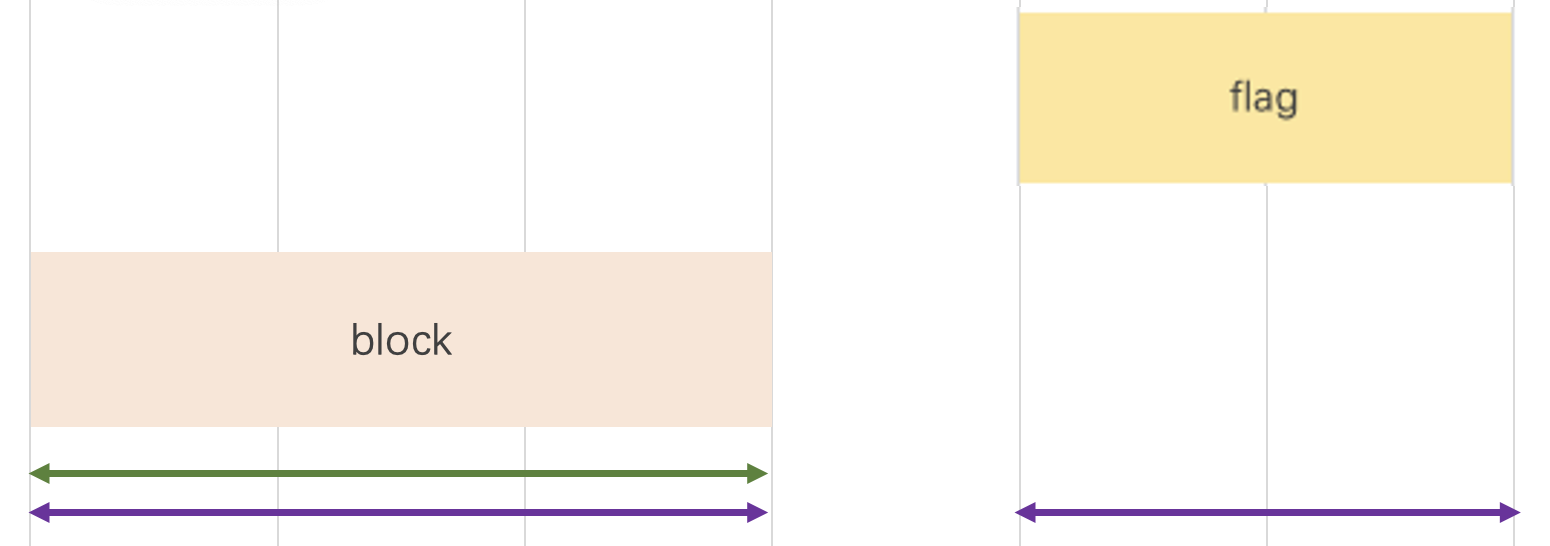

2	Move out Block column before flag duration		Time between Add flag and Remove flag + Time in block column	Time in block column

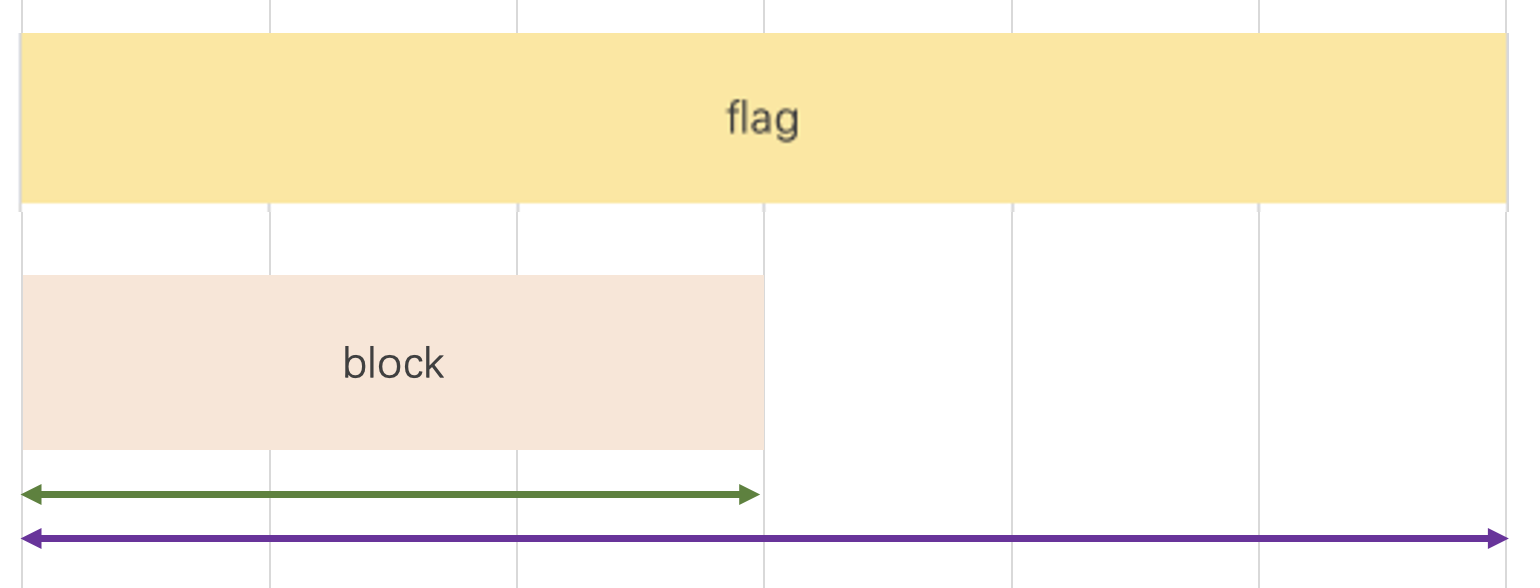

3	Block column duration within flag duration		Time between Add flag and Remove flag	Time in block column
4	Flag duration within Block duration		Time in block column	Time in block column

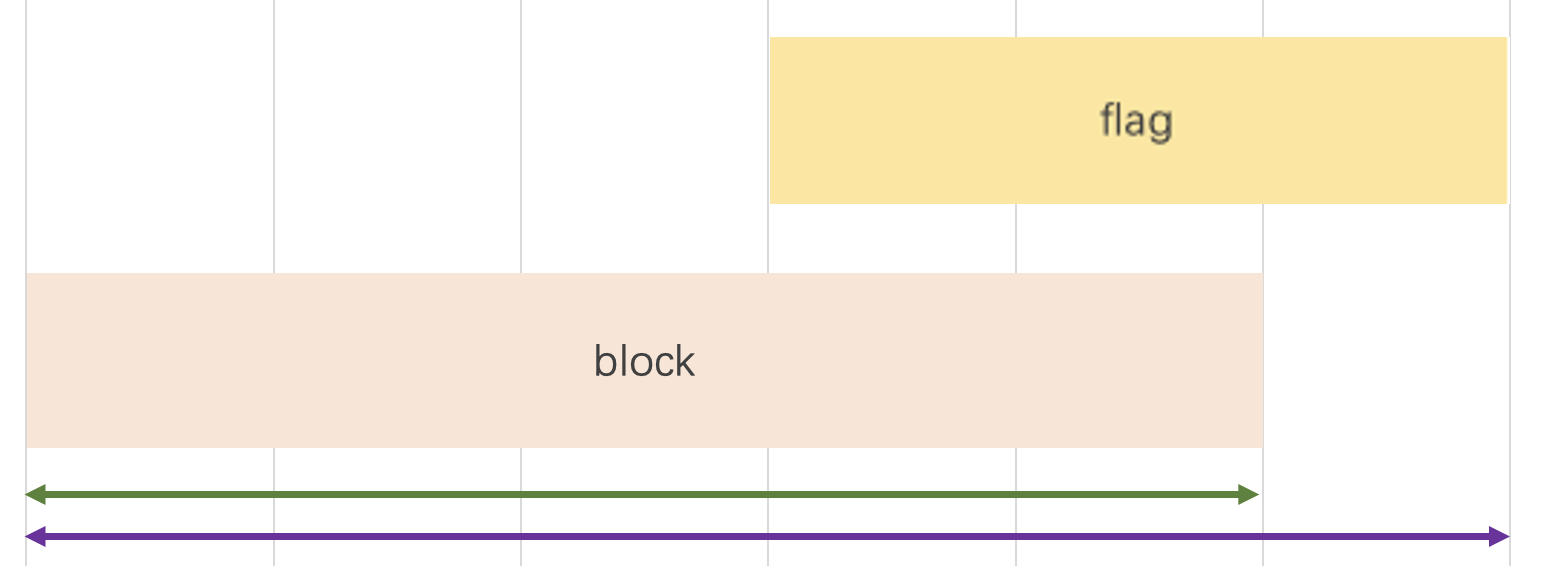

5	Block duration partial cross flag duration and block start time before flag start time		Time between Add flag and Remove flag + Time in block column - Overlap time	Time in block column

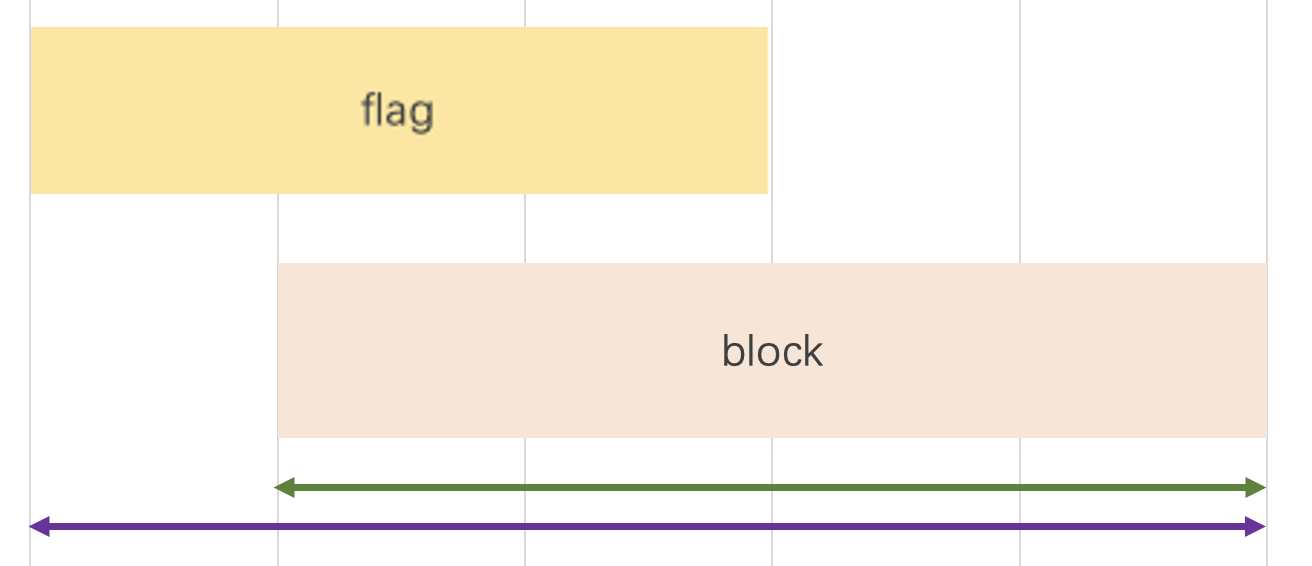

6	Block duration partial cross flag duration and block end time after flag end time		Time between Add flag and Remove flag + Time in block column - Overlap time	Time in block column
7	Flag duration partial cross realDone duration		Time between Add flag and Remove flag + Time in block column - flag and block cross time - flag and done cross time	Time in block column
